Vacuum Pumping System

VM Series

VMR-050

アルバック

It is the small high vacuum pumping system which made a mechanical booster pump, an oil rotary vacuum pump, and piping unify compactly.
Handling and maintenance check are easy and ideal for an experiment.

Features

  • It is a pressure domain where the pumping speed of a backing pump decreases, and the steep rise of pumping speed is possible.
  • An installation space is compact.
  • By pushing a button, it exhausts at a stretch to ultimate pressure.

Specification

Model
VMR-050
Ultimate pressure
4.0×10-2Pa
Main pump
Mechanical Booster Pump 833 L/min ( at 100Pa )
Backing pump
Oil Rotary pump 200 L/min
Inlet flange
VG-40
Weight
42kg
External dimensions
100V series 241.4mm(W)×534.5mm(D)×399mm(H)
200V series 241.4mm(W)×534.5mm(D)×399mm(H)


Utility

Model VMR-050
Power required
Single phase 100~120V/200~240V 1.5kVA
Ground terminal
D grade (ground resistance/100MΩ or less)
Connection
100V series : Vinyl cabtyre cable (with plug) 1.8m
200V series :Vinyl cabtyre cable  1.8m

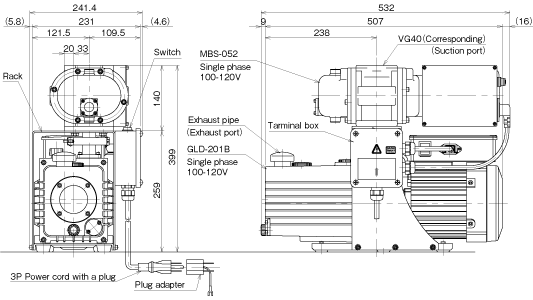

Dimension drawing

100V


200V


Exhaust System Drawing


該非判定結果報告書 Download

SDS Download

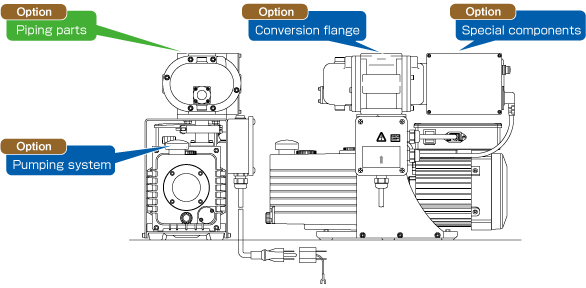

Accessories and Consumables
