Scroll Type Dry Vacuum Pump
For more information on ULVAC products, purchase, and/or consideration, click here.
Scroll type dry vacuum pumps are dry vacuum pumps that exhaust air by combining the movements of a scroll-type stator and rotor.
They are used in a wide range of fields, including vacuum drying equipment, physicochemical analysis equipment, vacuum suction transport equipment, and vacuum heat treatment furnaces.

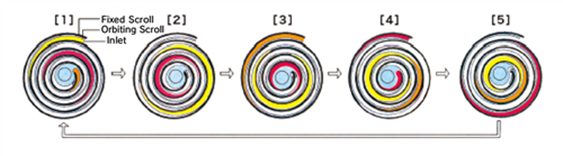

A scroll-type dry vacuum pump is constructed with two identical scrolls, each with a slightly offset center, so that the walls are in line contact with each other, and one of them oscillates relative to the other, creating a rubbing motion, causing the gas trapped in the crescent-shaped space to be compressed toward the center and discharged from the hole in the center. Normally, the compression process is designed to take place two or more times, resulting in low vibration and noise. Some pumps can reach a pressure of 1 Pa.
Scroll Type Dry Vacuum Pump
Model:DIS-252
This is a vacuum pump that evacuates by the eccentric motion of the spiral wall (orbiting scroll) facing the fixed spiral wall (fixed scroll).
Scroll Type Dry Vacuum Pump
Model:DIS-90
Double wrap / terminal only (without cord) with switch / with thermal protector / with air flash
Scroll Type Dry Vacuum Pump
Model:DIS-501
Double wrap / terminal only (without cord) with switch / with thermal protector / with air flash
Scroll Type Dry Vacuum Pump
Model:DISL-102
Single wrap / terminal only (without cord) with switch / with thermal protector / with air flash
Scroll Type Dry Vacuum Pump
Model:DISL-503
Single wrap / terminal only (without cord) with switch / with thermal protector / with air flash
Scroll Type Dry Vacuum Pump
Model:SGT-100
Vacuum Pump Suction and Exhaust Filter
This filter can trap acidic gas, oil mist effectively by using ion-exchanged resin fiber. Filter can be placed both vacuum and exhaust side and filter can be replaceable.
Scroll Type Dry Vacuum Pump
Model:SGT-200
Vacuum Pump Suction and Exhaust Filter
This filter can trap acidic gas, oil mist effectively by using ion-exchanged resin fiber. Filter can be placed both vacuum and exhaust side and filter can be replaceable.
