罗茨泵 Model:MBS-053
ULVAC
打印・
保存产品手册
保存产品手册
关于Model:MBS-053的介绍、购买、商讨
•低功耗
•使用磁性联轴器实现无漏油
•体积小巧，重量轻
•可在大气压下启动
•100V系统与220V系统下须设置驱动回路
•使用磁性联轴器实现无漏油
•体积小巧，重量轻
•可在大气压下启动
•100V系统与220V系统下须设置驱动回路
特点
小型罗茨式真空泵。
在排气速度下降的压力范围，内置的辅助泵可以使排气速度有显著的提升。
- 通过采用DC无刷电机，可以根据负载以最佳转速运行，因此可以从大气压力开始抽真空。
- 磁耦合结构，油不会泄漏到泵的外部。
- 泵的内部密封采用非接触式密封，可显着减少机械损失。
（与旧型号相比，功耗降低约60％） - 通过切换驱动器箱内的电源，可以在100V系统和200V系统下运行。
规格
| Unit | Specifications | |
| Actual Pumping Speed ※1 | m3/h | 50 |
| Ultimate pressure ※2 | Pa | 4.0×10-2 |
| Motor | DC brushless motor, 200W | |
| Power supply※3 | AC Single phase 100-120V / 200-240V （50/60Hz） | |
| Nominal speed | r/min | 3500 |
| Current | A | 1.2 （AC 100V） / 0.8 （AC 200V） ；Ultimate pressure |
| 4.33 （AC 100V） / 2.54 （AC 200V） ；Full load | ||
| Power consumption | W | 50 ；Ultimate pressure |
| 250 ；Full load | ||
| Oil capacity | mL | 70 |
| Recommended oil | SMR-200 | |
| Weight | kg | 11 |
| Inlet flange | JIS VG-40 | |
| Outlet flange | JIS VF-40 | |
| Backing pump | Oil Rotary pump 130～240L/min | |
| Ambient temperature | ℃ | 0～40 |
| External dimensions | mm | 167(W)×410(L)×130(H) |
※1：Pumping speed varies depends on pumping speed of backing pump.
※2：Measured by ionization vacuum gauge. Ultimate pressure varies depends on ultimate pressure of backing pump.
※3：Power supply plug and Power supply code are not included.
※2：Measured by ionization vacuum gauge. Ultimate pressure varies depends on ultimate pressure of backing pump.
※3：Power supply plug and Power supply code are not included.
电源电压
| Model | Applicable standard※ | ＣＥ Declartion of confirmity |
1Φ 100～120V |
1Φ 200～240V |
3Φ 200～240V |
3Φ 380～460V |
| MBS-053 | TUV | ● | ● | ● | － | － |
●：Standard、○：Option、－：Not Applicable
※TUV Certification: A high-quality product that complies with European standards as assessed by an international third party that conducts product safety testing and certification.
使用上的注意
|
１
|
Cannot use mechanical booster vacuum pump with a unit, and combine it with a backing vacuum pump (Fore Pump) by all means.
|
|
２
|
Mechanical Booster Pump becomes design to use in an inline.
Fix flange of the outlet side, and install a pump in this flange. |
|
３
|
Since pump oil bubbles at the time of starting when not operating initial operation and for a long period of time, please perform the exhaust gas for degassing with a backing vacuum pump.
|
|
４
|
Since operation in the atmospheric pressure neighborhood becomes the same grade as the exhaust speed of a backing vacuum pump, the feature of a booster is not demonstrated.
|
|
５
|
If pump oil exceeds the amount of regulations, oil will go into a rotor indoor part.
|
|
６
|
Please be sure to check that power supply voltage has agreed with the setting voltage of a pump.
|
|
７
|
The base for pump installations is not equipped. It becomes flange fixation.
|
|
８
|
The handle for pump carrying is not equipped.
|
|
９
|
Power cable and Unplug-preventive hardware is optional parts.
|

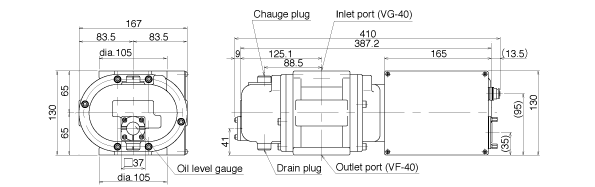

尺寸图

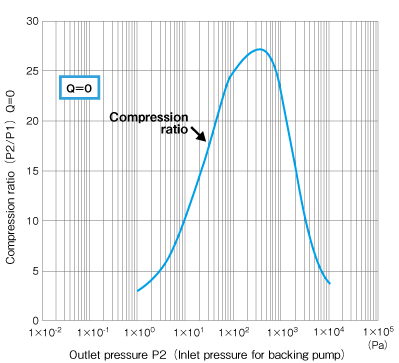

Compression ratio

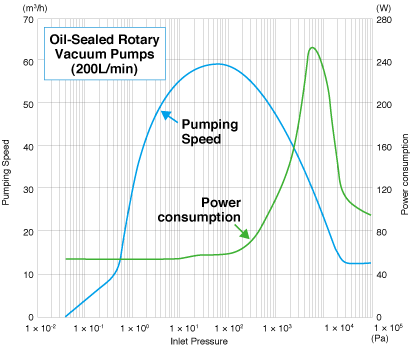

排气速度曲线
Optional parts
| Item | Model | Remarks |
| Power cable | With 100-120V plug | Unplug preventive hardware |
| Power cable | 100-120V without plug | Unplug preventive hardware |
| Power cable | 200-240V with plug | Unplug preventive hardware |
| Power cable | 200-240V without plug | Unplug preventive hardware |
| Unplug preventive hardware | 100-120V | Single item |
| Unplug preventive hardware | 200-240V | Single item |
| Electric voltage change connector | 100-120V （Red） | for 100V range, standard accessories ※ |
| Electric voltage change connector | 200-240V （Blue） | for 200V range, standard accessories ※ |
| Vacuum pump oil | SMR-200 | 70mL, standard accessories |
※ The specified electric voltage change connector is equipped in the case of pump purchase.
