Vacuum Pumping System Model:VTR-350M/X
ULVAC KIKO
Print/Download
For more information on ULVAC products, purchase, and/or consideration, click here.
It is the small high vacuum pumping system which stored compactly required apparatus, such as a main pump, backing pump, valve piping, an electric system, and a pressure measurement port, in the mount.
"Model:VTR-350M/X" is preparing four types with which the composition of an exhaust system differs.
Handling is easy and ideal for an experiment.
"Model:VTR-350M/X" is preparing four types with which the composition of an exhaust system differs.
Handling is easy and ideal for an experiment.
Features
- The vacuum chamber can be opened without stopping the main pump.
- Maintenance is easy, because it is made of few parts included a three way valve.
- Improved system scalability by using new rack which can install optional items such as vacuum gauge.
- It is easily moving vacuum pumping system with casters.
- The safety of the installation can be secured with adjusters.
Specification
|
Model
|
VTR-350M/X |
|
Ultimate pressure
|
10-４Pa 10-５Pa（LN2) |
|
Main pump
|
Turbo molecular pump(air cooling) 345 L/sec |
|
Backing pump
|
Oil Rotary pump 200 L/min |
|
Main valve
|
100A Butterfly valve |
|
Sub valve
|
Three way valve |
|
Inlet flange
|
VG-100 |
|
Weight
|
140kg |
|
External dimensions （W×D×H）
|
730mm(W)×584mm(D)×804mm(H) |
|
※Ionization vacuum gauge ? Pirani vacuum gauge ? LN cold trap ? Conversion flange ? Oil mist trap are options.
|
Utility
| Model | VTR-350M/X |
|
Power required
|
Single phase 100V 1.4kVA |
|
Ground terminal
|
D grade （ground resistance/100MΩ or less） |
|
Connection
|
Vinyl cabtyre cable (with R3.5-4 ring tongue terminals) 4m |

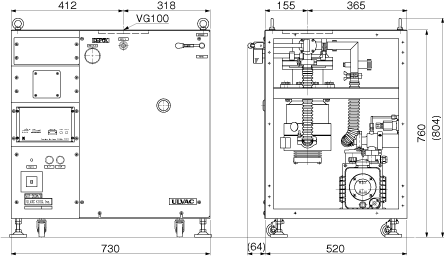

Dimension drawing
Exhaust System Drawing
