Diaphragm Type Dry Vacuum Pump
Standerd Type (2 Stage)
Model: DA-60D
ULVAC
Print/Download
For more information on ULVAC products, purchase, and/or consideration, click here.
Standard type / Two-stages / with power cord / with switch / with thermal protector
Features
- A standard type of dry vacuum pump with abundant results and low price.
- Dry vacuum pump using no oil in the gas contact area.
- Rich lineup available to suit your application.
- The two-stage exhaust system has lower pressure (good vacuum) than the one-stage exhaust system.
- Safety design with built-in automatic reset type thermal protector.
- Operation is possible from atmospheric pressure.
- Simple structure and easy maintenance.
- Since the unloader valve is built in, it is possible to restart from the vacuum state.
Specification
|
|
Unit | 50Hz | 60Hz |
|
Actual pumping speed
|
L/min | 60 | 72 |
|
Ultimate pressure※1
|
Pa (kPa) | 3.32×103 （-98.0） | |
|
Motor
|
Single phase, 100V, 200W, 4P,Capacitor run | ||
|
Full load current
|
A | 5.0 | |
|
Weight
|
kg | 19.0 | |
|
Inlet,outlet pipe diameter（Female）
|
mm | O.D.Φ14×I.D.Φ9 (G 3/8) | |
|
Ambient temperature
|
℃ | 7 - 40 | |
|
External dimensions
|
mm | 156(W) X 358(L) X 238(H) | |
※1：The gauge pressure display is shown in () of Ultimate pressure.
Corresponding certificate／Voltage
| Model | Applicable standard | ＣＥ Declartion of confirmity |
1Φ 100V |
1Φ 115V |
1Φ 200V |
1Φ 220V |
| DA-60D | － | － | ✓ | － | ○ | ○ |
✓：Standard, ○：Option, －：Not Applicable
Caution
1. The pump will not often operate normally if it is used with corrosive gases, organic solvents, liquids, or condensed gases (eg steam).
The pump will not often operate normally if it is used with gases containing particles or dust etc.
2. It is a pump only in the room.
Please do not set it up in the place, that rain and water splash, and outdoors.

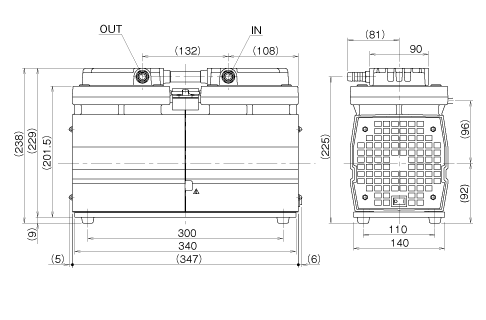

Dimension drawing

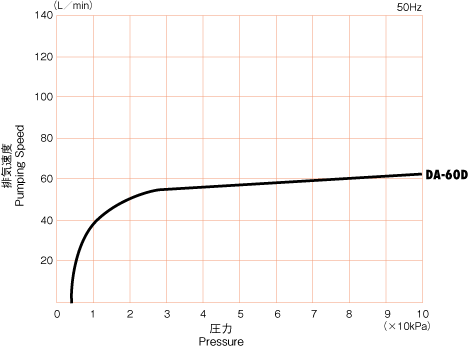

Pumping Speed Curves
