Diaphragm Type Dry Vacuum Pump
Standerd Type (Single Stage)
Model: DAT-100S
ULVAC
Print/Download
For more information on ULVAC products, purchase, and/or consideration, click here.
Standard type / 1-stage exhaust system / with thermal protector / with motor lead wire crimp terminal
Features
- A standard type of dry vacuum pump with abundant results and low price.
- Dry vacuum pump using no oil in the gas contact area.
- Rich lineup available to suit your application.
- One-stage exhaust system is faster than two-stage exhaust system.
- Safety design with built-in automatic reset type thermal protector.
- Operation is possible from atmospheric pressure.
- Simple structure and easy maintenance.
Applications
- Vacuum chucks, wafer and tip handling devices.
- Vacuum tweezers, medical appliances.
- Printing equipment.
- Automatic packing machines.
- Optical appliances.
- Semiconductor industry.
- Injection molding machine.
Specification
| Unit | 50Hz | 60Hz | |
| Actual pumping speed | L/min | 100 | 110 |
| Ultimate pressure※1 | Pa (kPa) | 13.3×103 （-88.0） | |
| Motor※2 | Single phase, 100V, 200W, 4P, Split phase starting | ||
| Full load current | A | 5.6 | 5 |
| Weight | kg | 11 | |
| Inlet,outlet pipe diameter（Female） | mm | O.D.Φ12×I.D.Φ8.5 (Rc 1/4) | |
| Ambient temperature | ℃ | 7～40 | |
| External dimensions | mm | 150(W)×232(L)×305(H) | |
※1：The gauge pressure display is shown in () of Ultimate pressure.
※2：Power supply plug and Power supply code are not included.
※2：Power supply plug and Power supply code are not included.
Corresponding certificate／Voltage
| Model | Applicable standard※ | ＣＥ Declartion of confirmity |
1Φ 100V |
1Φ 115V |
1Φ 200V |
1Φ 220V |
3Φ 200～220V |
| DAT-100S | － | － | ● | － | ○ | ○ | － |
| DAT-100SA | TUV・cTUVus | ● | － | － | － | － | ● |
●：Standard, ○：Option, －：Not Applicable
※TUV Certification: A high-quality product that complies with European standards as assessed by an international third party that conducts product safety testing and certification.
※cTUVus Certification: A high quality product that complies with Canadian and US standards as assessed by an international third party that conducts product safety testing and certification.
※TUV Certification: A high-quality product that complies with European standards as assessed by an international third party that conducts product safety testing and certification.
※cTUVus Certification: A high quality product that complies with Canadian and US standards as assessed by an international third party that conducts product safety testing and certification.
Caution
|
１
|
The pump is stopped when the lord is operated, and the pump can’t be operated just after that.
In this case, please return the atmospheric pressure the inside of the pump. |
|
２
|
The pump will not often operate normally if it is used with corrosive gases, organic solvents, liquids, or condensed gases (eg steam).
The pump will not often operate normally if it is used with gases containing particles or dust etc. |
|
３
|
A large current flows when the pump starts.
If ON/OFF of the pump power supply will be frequently done in a short time, trouble might be caused. Please do not turn a frequent power supply on and off in a short time. |
|
４
|
It is a pump only in the room.
Please do not set it up in the place, that rain and water splash, and outdoors. |

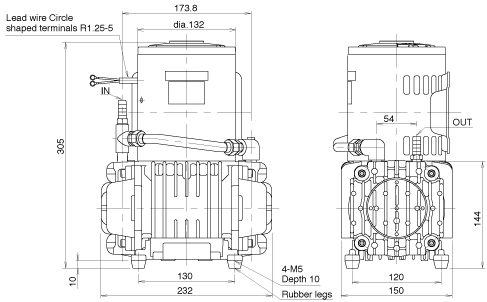

Dimension drawing

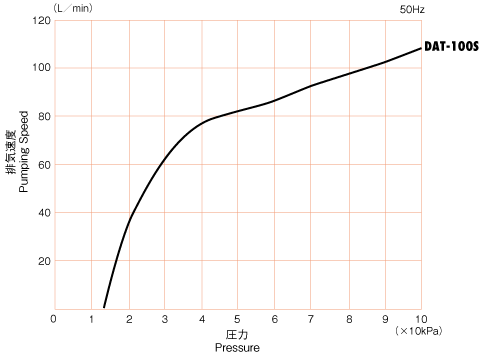

Pumping Speed Curves
