Oil Rotary Vacuum Pump
Anti-corrsive Type Model: GCD-201X

ULVAC

Print/Download

For more information on ULVAC products, purchase, and/or consideration, click here.

Chemical type / 2-stage exhaust system / with reverse flow prevention mechanism / with gas ballast mechanism / with thermal protector / with switch / with terminal only cord

Features

Chemical type of Oil rotary pump with surface treatment on the gas contact surface.
Connectable to oil filtration system.
Low noise and low vibration.
The backflow prevention mechanism prevents oil from flowing back to the vacuum chamber when it is stopped due to a power failure.
The exhaust speed is stable due to the installation of the forced oil supply mechanism.
Operation from atmospheric pressure is possible.
Easy connection with flanged parts and connection by knock pins on internal parts.

Specification

		Unit	50Hz	60Hz
Actual pumping speed		L/min	200	240
Ultimate pressure^※1	G.V.Closed	Pa	0.67
	G.V.Open		6.7
Motor^※2			Three phase, 200V, 700W, 4P
Full load current		A	3.45	3.08
Oil capacity		mL	1,100
Recommended oil			SO-M
Weight		kg	26.6
Inlet port diameter		mm	KF-25
Ambient temperature		℃	7 - 40
External dimensions		mm	170(W) X 509.5(L) X 241.1(H)

※1：Ultimate pressure is measured by Pirani gauge.(In the case of measurement by McLeod gauge, the value is lower by an order of magnitude for pumps with an Ultimate pressure of 1.3 Pa or less.)
※2：Power supply plug and Power supply code are not included.

Corresponding certificate／Voltage

Model	Applicable standard	ＣＥ Declartion of confirmity	1Φ 100V	1Φ 115V	1Φ 200V	1Φ 220V	1Φ 230V	3Φ 200V

GCD-201X	－	－	○	－	○	○	－	✓

✓：Standard, ○：Option, －：Not Applicable
※Please consult with us regarding the safety expansion motor.

Note

１	Oil is deteriorated with operating, and becomes the factor of performance shortage. A decrease and the dirt of oil are confirmed, and please regularly add and replace it.
２	A backflow preventer is incorporated into the pump to prevent the oil from flowing back while the pump is stopped. Please make a suction side into atmospheric pressure when the pump is stopped for a long time.
３	If operation is performed at high pressure, oil mist is generated at the exhaust side. We will recommend the use of the oil mist separator for the oil mist splash prevention.
４	The influence might go out to the pump life according to the characteristic and the amount of the evacuated gas. Especially, longevity is remarkably shortened, and corrosion resistance might not be able to be demonstrated about ammonia and sulfuric acid.
５	It is not suitable for the pump if operation is performed continuously at a high evacuation pressure of 1kPa or more.
６	There is a risk of explosion. Never block the outlet or operate the pump with equipment mounted at the outlet side that blocks the passage of gas. Otherwise, the internal pump pressure increases causing the pump to explode, the oil level gauge to protrude or the motor to be overloaded.
７	Same parts of the pump are made by carbon. Oil becomes black with wear-out powder of carbon parts, when operation is doing. But it doesn’t affect the performance and service life of the pump.
８	Fluoride rubber material is used for the internal parts of a pump. There are some for which the chemical resistance of Fluoride rubber materialis not suitable. Especially, be careful of the following chemical. Ammonia, Acetone, Ethylene oxide, Ethylene diamine, Zinc acetate, Amyl acetate, Aluminum acetate, Isopropyl acetate, Ethyl acetate, Lead acetate, Calcium acetate, Cellosolve Acetate, Nickel acetate, Butyl acetate acetate,ffffetate,Propyl acetate, Methyl acetate, Nitroethane, Nitropropane, Nitromethane, Freon. Propyl acetate, Methyl acetate, Nitroethane, Nitropropane, Nitromethane, Freon.

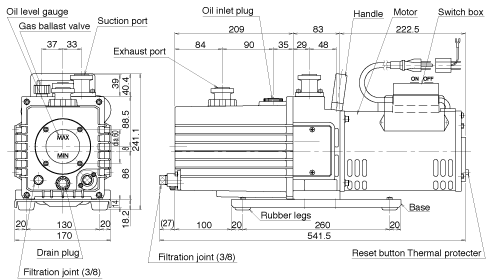

Dimension drawing

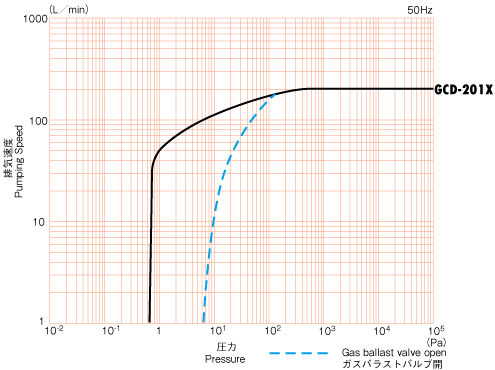

Pumping Speed Curves
