Optional Parts Anti-vibration rubber Model:KA-25
ULVAC
For more information on ULVAC products, purchase, and/or consideration, click here.
When installing the vacuum pump in the equipment, use anti-vibration rubber to reduce vibration and shock transmission.
Standard/Size
Static spring constant: 180N/mm
Maximum allowable weight: 240N
Applicable models
| Category name | Model |
| Rocking Piston Type Vacuum Pumps | DOP-301SB |
| Rocking Piston Type Vacuum Pumps | DOP-400SB |

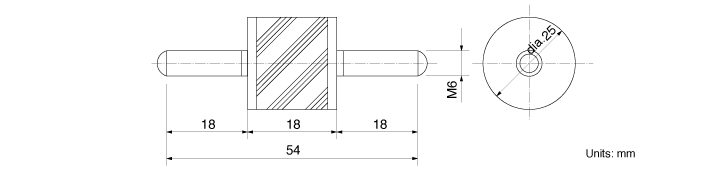

Outline Drawing
