Optional Parts Anti-vibration rubber Model:ME-10
ULVAC
For more information on ULVAC products, purchase, and/or consideration, click here.
When installing the vacuum pump in the equipment, use anti-vibration rubber to reduce vibration and shock transmission.
Standard/Size
Static spring constant: 58.5N/mm
Maximum allowable weight: 49.0N
Applicable models
| Category name | Model |
| Diaphragm type Vacuum Pumps | DA-120S |
| Diaphragm type Vacuum Pumps | DA-30D |
| Diaphragm type Vacuum Pumps | DA-41D |
| Diaphragm type Vacuum Pumps | DA-60D |
| Diaphragm type Vacuum Pumps | DA-60S |
| Diaphragm type Vacuum Pumps | DA-81S |
| Diaphragm type Vacuum Pumps | DAU-20 |
| Diaphragm type Vacuum Pumps | DTC-22 |
| Diaphragm type Vacuum Pumps | DTC-41 |
| Diaphragm type Vacuum Pumps | DTC-60 |
| Diaphragm type Vacuum Pumps | DTU-20 |

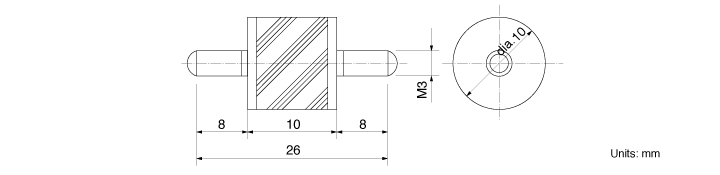

Outline Drawing
