Optional Parts Anti-vibration rubber Model:ME-12cut
ULVAC
For more information on ULVAC products, purchase, and/or consideration, click here.
When installing the vacuum pump in the equipment, use anti-vibration rubber to reduce vibration and shock transmission.
Standard/Size
Static spring constant: 49.0N/mm
Maximum allowable weight: 58.5N
Applicable models
| Category name | Model |
| Diaphragm type Vacuum Pumps | DA-20D |
| Diaphragm type Vacuum Pumps | DA-40S |
| Diaphragm type Vacuum Pumps | DAP-12S |
| Diaphragm type Vacuum Pumps | DAP-6D |

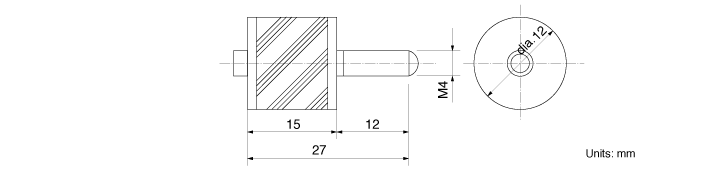

Outline Drawing
