Optional Parts Anti-vibration rubber Model:ME-15cut
ULVAC
For more information on ULVAC products, purchase, and/or consideration, click here.
When installing the vacuum pump in the equipment, use anti-vibration rubber to reduce vibration and shock transmission.
Standard/Size
Static spring constant: 78.4N/mm
Maximum allowable weight: 98.0N
Applicable models
| Category name | Model |
| Rocking Piston Type Vacuum Pumps | DOP-40D |
| Rocking Piston Type Vacuum Pumps | DOP-80S |
| Pressure Pump | DOP-80SP |

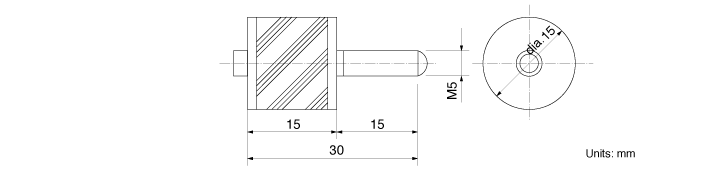

Outline Drawing
