Optional Parts Anti-vibration rubber Model:ME-20
ULVAC
For more information on ULVAC products, purchase, and/or consideration, click here.
When installing the vacuum pump in the equipment, use anti-vibration rubber to reduce vibration and shock transmission.
Standard/Size
Static spring constant: 166.7N/mm
Maximum allowable weight: 186.3N
Applicable models
| Category name | Model |
| Diaphragm type Vacuum Pumps | DA-121D |
| Diaphragm type Vacuum Pumps | DA-241S |
| Diaphragm type Vacuum Pumps | DAL-181D |
| Diaphragm type Vacuum Pumps | DAL-361S |
| Diaphragm type Vacuum Pumps | DAT-100S |
| Diaphragm type Vacuum Pumps | DAT-50D |
| Diaphragm type Vacuum Pumps | DTC-120 |

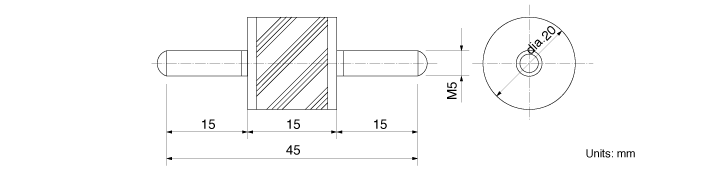

Outline Drawing
