Optional Parts VCR Adapter SCA-2538-F
ULVAC
For more information on ULVAC products, purchase, and/or consideration, click here.
Outline
Piping parts for vacuum pumps and vacuum equipment.
Standard/Size
Please use it for with Swaglok joint.
Material: Joint = SUS316 Material : Flange = SUS304
VCR is a registered trademark of Swaglok Co.
<Female>
Flange size: KF25
Tube diameter: 3/8inch
VCR fitting size: 3/8inch

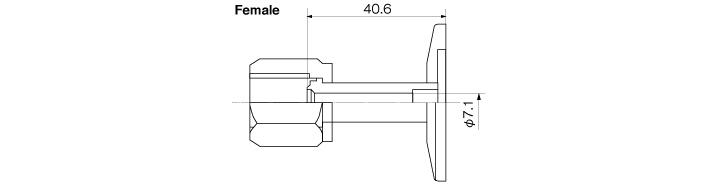

Outline Drawing
