DOP-400SB

アルバック

Standard type / 1 step exhaust system / built-in thermal protector / with input terminal block (without cord)

Features

Compact size with large displacement.
Dry vacuum pump using no oil in the gas contact area.
Rich lineup available to suit your application.
Safety design with built-in automatic reset type thermal protector.
Operation is possible from atmospheric pressure.
Continuous operation in all pressure zones is possible./li>
Simple structure and easy maintenance.

Applications

Vacuum chuck, vacuum tweezers.
Semiconductor industry. (Handler, Mounter)
FPD industry. (Bonder)
Printing machine.
Injection molding.
Adsorption and transfer.

Specification

	Unit	50Hz	60Hz
Actual pumping speed	L/min	400	440
Ultimate pressure^※1	Pa (kPa)	12.0×10³ （-89.3）
Motor^※2		Three phase、200-220V、400W、4P
Full load current	A	2.4	2.8
Weight	kg	23.0
Inlet,outlet pipe diameter（Female）	mm	Application tube outer diameter Φ16　(Rc1/2)
Ambient temperature	℃	0～40
External dimensions	mm	316(W)×434(L)×231(H)

※1：The gauge pressure display is shown in () of Ultimate pressure.
※2：Power supply plug and Power supply code are not included.

Corresponding certificate／Voltage

Model	Applicable standard^※	ＣＥDeclartion of confirmity	1Φ 100V	1Φ 200V	3Φ 200～220V
DOP-400SB	TUV・cTUVus	●	－	－	●

●：Standard、○：Option、－：Not Applicable
※TUV Certification: A high-quality product that complies with European standards as assessed by an international third party that conducts product safety testing and certification.
※cTUVus Certification: A high quality product that complies with Canadian and US standards as assessed by an international third party that conducts product safety testing and certification.

Caution

1.　The pump is stopped when the lord is operated, and the pump can’t be operated just after that. In this case, please return the atmospheric pressure the inside of the pump.

2.　The pump will not often operate normally if it is used with corrosive gases, organic solvents, liquids, or condensed gases (eg steam). The pump will not often operate normally if it is used with gases containing particles or dust etc.

3.　Cup packing that is the sliding material of the pump will be worn out by operating, and microscopic particles result from wear of component. Moreover, wear is promoted because the sliding material is weak in moisture, and the pump life decreases if the vacuum gas is moisture. Please suck neither moisture nor condensed gas (steam etc.).

4.　It is a pump only in the room. Please do not set it up in the place, that rain and water splash, and outdoors.

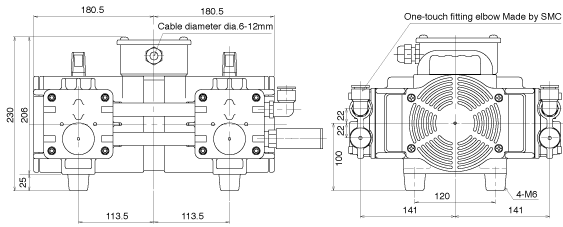

Dimension drawing

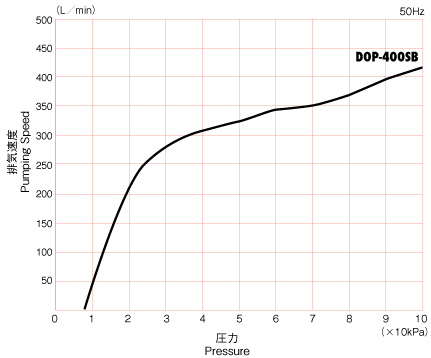

Pumping Speed Curves

該非判定結果報告書 Download

SDS Download

Accessories and Consumables

Instruction Manuals and Specifications Download

Applications Download

Technical drawings Download

Technical Data Download
