DOP-40D

アルバック

Standard type / Two-stage exhaust system / Thermal protector built-in / Power supply code

Features

Compact size with large displacement.
Dry vacuum pump using no oil in the gas contact area.
Rich lineup available to suit your application.
Safety design with built-in automatic reset type thermal protector.
Operation is possible from atmospheric pressure.
Continuous operation in all pressure zones is possible./li>
Simple structure and easy maintenance.

Applications

Vacuum chuck, vacuum tweezers.
Absorption and transfer of automatic machines.
Vacuum packing printing machines.
Tip mounter.
Medical equipments.
Oxygen generator.

Specification

	Unit	50Hz	60Hz
Actual pumping speed	L/min	40	44
Ultimate pressure^※1	Pa (kPa)	1.2×10³ （-100.1）
Motor^※2		Single phase, 100V, 210W, 4P,Capacitor run
Full load current	A	3.2	3.9
Weight	kg	7.0
Inlet,outlet pipe diameter（Female）	mm	O.D.Φ9×I.D.Φ5 (Rc 1/4)
Ambient temperature	℃	7～40
External dimensions	mm	160(W)×270(L)×179(H)

※1：The gauge pressure display is shown in () of Ultimate pressure.
※2：Power supply plug and Power supply code are not included.

Corresponding certificate／Voltage

Model	Applicable standard	ＣＥ Declartion of confirmity	1Φ 100V	1Φ 115V	1Φ 200V	1Φ 220V	1Φ 230V
DOP-40D	－	－	●	○	○	○	－

●：Standard、○：Option、－：Not Applicable

Caution

1.　The pump is stopped when the lord is operated, and the pump can’t be operated just after that. In this case, please return the atmospheric pressure the inside of the pump.

2.　The pump will not often operate normally if it is used with corrosive gases, organic solvents, liquids, or condensed gases (eg steam). The pump will not often operate normally if it is used with gases containing particles or dust etc.

3.　Cup packing that is the sliding material of the pump will be worn out by operating, and microscopic particles result from wear of component. Moreover, wear is promoted because the sliding material is weak in moisture, and the pump life decreases if the vacuum gas is moisture. Please suck neither moisture nor condensed gas (steam etc.).

4.　It is a pump only in the room. Please do not set it up in the place, that rain and water splash, and outdoors.

5.　When securing the pump to a device etc., be sure to attach anti-vibration rubber. Mounting screw size of anti-vibration rubber is M5 x P0.8. Also, the length of the anti-vibration rubber screw mounted on the pump side should not exceed 10 mm.

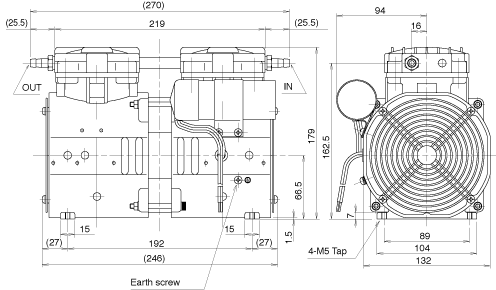

Dimension drawing

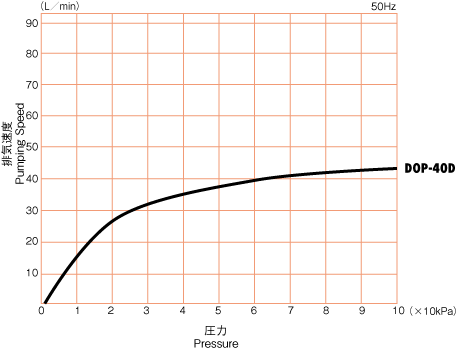

Pumping Speed Curves

該非判定結果報告書 Download

SDS Download

Accessories and Consumables

Instruction Manuals and Specifications Download

Applications Download

Technical drawings Download

Technical Data Download

Features

Compact size with large displacement.

Dry vacuum pump using no oil in the gas contact area.

Rich lineup available to suit your application.

Safety design with built-in automatic reset type thermal protector.

Operation is possible from atmospheric pressure.

Continuous operation in all pressure zones is possible./li>

Simple structure and easy maintenance.

Specification

	Unit	50Hz	60Hz
Actual pumping speed	L/min	40	44
Ultimate pressure^※1	Pa (kPa)	1.2×10³ （-100.1）
Motor^※2		Single phase, 100V, 210W, 4P,Capacitor run
Full load current	A	3.2	3.9
Weight	kg	7.0
Inlet,outlet pipe diameter（Female）	mm	O.D.Φ9×I.D.Φ5 (Rc 1/4)
Ambient temperature	℃	7～40
External dimensions	mm	160(W)×270(L)×179(H)

※1：The gauge pressure display is shown in () of Ultimate pressure.
※2：Power supply plug and Power supply code are not included.

Caution

1.　The pump is stopped when the lord is operated, and the pump can’t be operated just after that. In this case, please return the atmospheric pressure the inside of the pump.

4.　It is a pump only in the room. Please do not set it up in the place, that rain and water splash, and outdoors.
