Scroll Type Dry Vacuum Pump Model: DISL-102
ULVAC
Print/Download
For more information on ULVAC products, purchase, and/or consideration, click here.
Single wrap / terminal only (without cord) with switch / with thermal protector / with air flash
Features
- Compact size with large displacement.
- Vacuum pump resistant to high humidity gas.
- Safety design with built-in automatic reset type thermal protector.
- Suppresses moisture condensation by air flush.
Applications
- Pick and transfer system.
- Cleaning and drying.
- Degassing / deforming.
- Packaging.
Specification
| Unit | 50Hz | 60Hz | |
| Actual pumping speed | L/min | 100 | 120 |
| Ultimate pressure | Pa | 20 | |
| Motor※ | Single phase, 100/115/200/230V, 300W, 2P, Capacitor start/run | ||
| Full load current | A | 2.6/1.3/1.4 | 2.9/2.8/1.6/1.4 |
| （100/200/230V） | （100/115/200/230V） | ||
| Weight | kg | 17 | |
| Inlet flange | KF-25 | ||
| Outlet pipe diameter | KF-16 | ||
| Ambient temperature | deg. C | 5 - 40 | |
| Water vapor handing | g/day | 100 (※AF open) | |
| External dimensions | mm | 221(W)×380(L)×218(H) | |
※：Power supply plug and Power supply code are not included.
※：AF＝Air flush
The air flush operation not only discharges the water remaining in the pump, but also has the effect of recovering the Ultimate pressure.
※：AF＝Air flush
The air flush operation not only discharges the water remaining in the pump, but also has the effect of recovering the Ultimate pressure.
Corresponding certificate／Voltage
| Model | Applicable standard※ | ＣＥDeclartion of confirmity | 1Φ 100V |
1Φ 200V |
3Φ 200V |
3Φ 400V |
| DISL-102 | cTUV | ✓ | ✓ (Can be switched by changing the terminal plate) |
－ | － | |
✓：Standard, ○：Option, －：Not Applicable
※cTUV certification: This is a high quality product that complies with Canadian standards, as assessed by an international third party that conducts product safety testing and certification.
※cTUV certification: This is a high quality product that complies with Canadian standards, as assessed by an international third party that conducts product safety testing and certification.
Caution
|
１
|
If the pump evacuates the powder or the product, it might be damaged.
Please use the inlet filter etc. |
|
２
|
Do not evacuate gas which is hazardous to humans or explosive, flammable, or corrosive. If done, it can cause failure by gas, explosion or ignite.
|

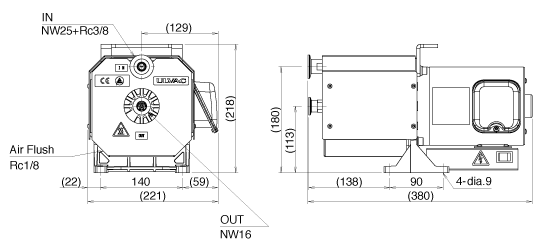

Dimension drawing

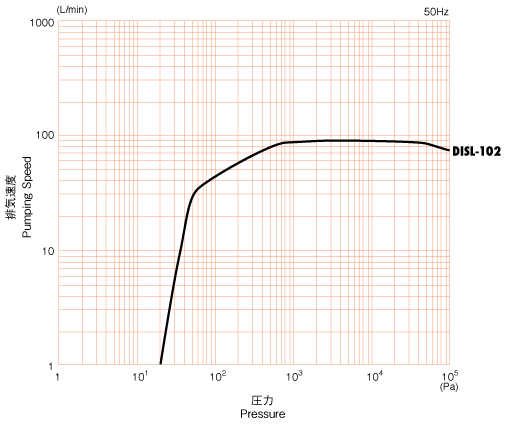

Pumping Speed Curves
